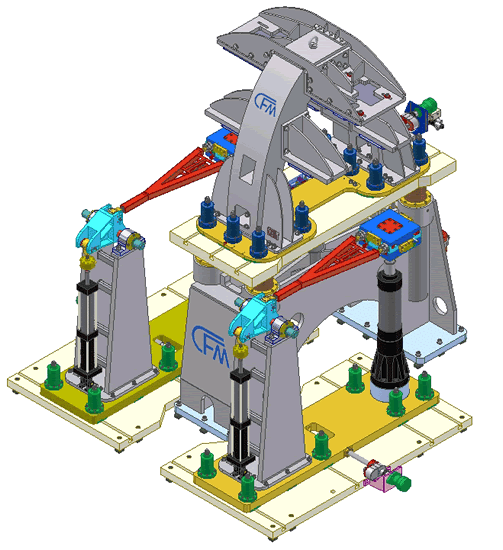

Axle Test Rig for Suspension Development and Design

The axle test rig is designed to analyze prototype axles.
You can use this universal 2-axial (3-axial upgrade) test rig as a measuring system
or as a fatigue test system.

This test fixture is designed with a 1st. natural frequency of 30 Hz.
