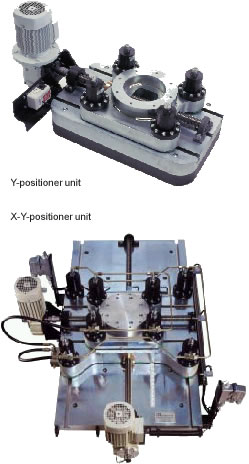

X-Y-positioner for a 4-poster test system consists of two
X-Y positioner units and two Y-positioner units. This allows
its individual adjustment according to the track and wheel
base of different vehicles.
motors and trapezoid spindles realize the appropriate movements.
Hydraulically released spring clamps release and tighten the
moving plates. All positioners are available with a manual
or PC control.
track width: ± 300 mm
wheel base: ± 750 mm
Adjustment speed: 380 mm/min
Electric supply: 6 kW / 400 V / 50/60 Hz
supply: 10 l/min at 3000/4000 psi
