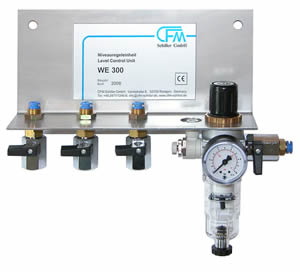

MAINTANANCE UNIT WE 300



This cost-effective supply unit disposes of the basic functionality to run a vibration isolation system. The input pressure can be adjusted, the water can be drained from the compressed air and the maintenance unit can be separated from the supply pressure by a ball valve. The air flow to the air springs can be adjusted by an adjustable throttle valve. Each sub systems can be exhausted by a ball valve.
