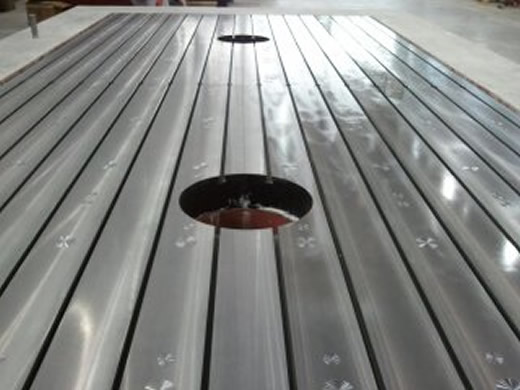

T-slot Base Plates

Baseplates are made from a special cast iron / steel alloy giving a Brinell hardness of 180-200. Exceptional stability is achieved by rib pattern and design accompanied with a controlled process cooling after casting.

The top surface is planed to DIN 867 flatness accuracy.

T-slots are machined according to DIN 650 H12. The size and the width of the slots is arranged according to the customer´s needs.

For more infomation on baseplates for the Automotive Industry see also STOLLE GmbH.

download pdf brochure
get the Acrobat Reader
