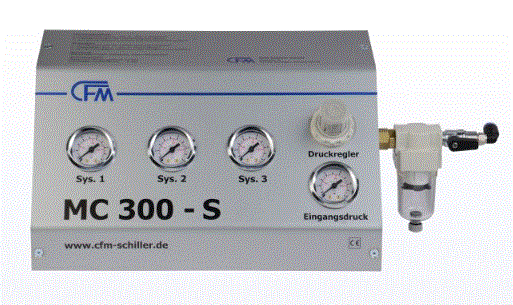

MC 300-S

This level control unit comprises the supply unit to adjust the input pressure, to drain the water from the compressed air and separate the vibration isolation system from the supply pressure by a ball valve. The main air flow can be adjusted by a throttle valve. The actual input pressure and the pressure in the three sub systems is displayed by analog pressure gauges. The vibration isolation system can be deflated by three balls valves. Three boxes with level-control-valves are scope of supply.

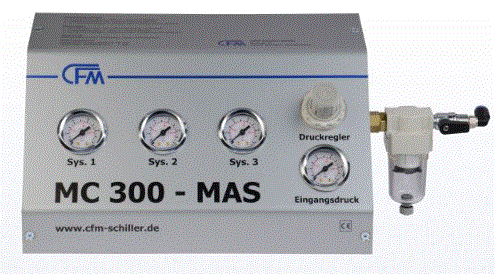

MC 300-MAS

This level control unit is optimized to run vibration isolation systems made of membrane air springs.

The level control valves are not scope of supply because the level control valves are integrated in the membrane air springs. The level control unit comprises the supply unit to adjust the input pressure, to drain the water from the compressed air and separate the vibration isolation system from the supply pressure by a ball valve. The main air flow can be adjusted by a throttle valve. The actual input pressure and the pressure in the three sub systems is displayed by analog pressure gauges. The vibration isolation system can be deflated by three balls valves.
