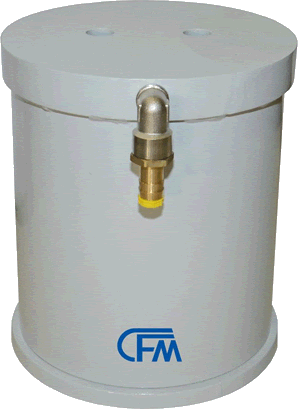

Roll Bellow Air Spring Type RB SH

A rolling lobe bellow is fixed between two steel plates. The rolling lobe is guided by a steel piston that is connected with the upper steel plate. The air inlet is integrated into the top plate.

The elastomer belt shows excellent dynamic properties and good resistance to chemicals.

APPLICATION
passive vibration isolation
- high degree of isolation - lasertechnical rig
- low dynamic - measuring setups
- measurement technology equipment - electron microscopes
