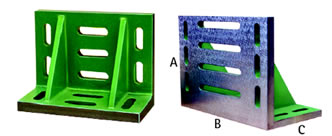

Angle Plates, Type WS

STOLLE's lightweight angle plates are supplied with cast bolt slots in both faces. The arrangement and distribution of the slots means they can be used on backing plates with varying spacing between slots and holes. On the reverse the angle plates have two strengthening ribs. The working surfaces are machined to DIN 876 in varying grades of accuracy, angular accuracy to DIN 875. The end
faces are also machined.

Angle Plate, Type WSN

With its relatively light weight this angle is suited as angle plate for machine tools and equally can be used for control and marking purposes. The vertical work face and the base are machined to DIN 876 for flatness and DIN 875 for
angular accuracy, the ends are also machined. Horizontal T-slots in the vertical face are to DIN 650 with the slot width tolerance to H 12. The base has cast clamping slots. The back face of this angle is webbed stable.
